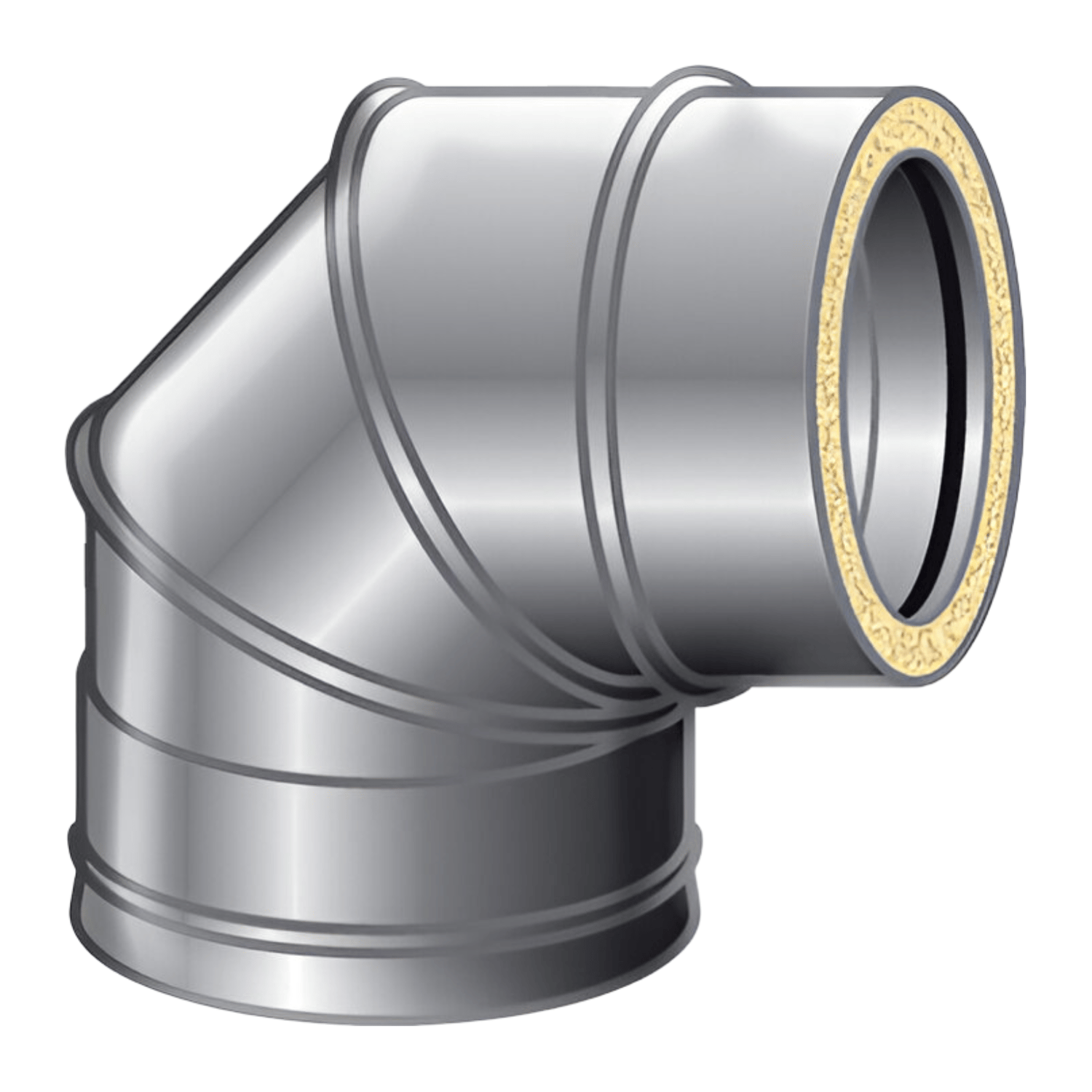

Double-walled bend 87°
The LD Flue double-walled 87° elbow is a high-quality, thermally insulated elbow that provides a complete change of direction in a flue gas exhaust system. The 87° angle is ideal for bypassing small and large obstacles or for adjusting the ductwork.
Inside diameter
Outside diameter
Stock
Delivery time
Article number
Name
Gross price
Netto price
Features
| Colour | Stainless steel matt |
| Classification | T200 P1 W V2 L50050 O10 / T200 H1 W V2 L50050 O10 / T450 N1 W V2 L50050 O40 / T450 N1 D V3 L50050 G50 / T600 N1 D V3 L50050 G70 |
| Suitable for | Gas, gas condensation, fuel oil, fuel oil condensation, pellets, wood, coal |
| System inspection | 5000 Pa |
| Temperature resistant | Overpressure 200°C / Underpressure 600°C |
| Stock | In stock, Out of stock |
| Delivery time | 3 to 5 days, Ordered before 3pm, delivered next day |
| Inside diameter | 80, 100, 130, 150, 180, 200, 250, 300, 350 |
| Outside diameter | 130, 150, 180, 200, 230, 250, 300, 350, 450 |
| Insulation thickness | 25mm |
