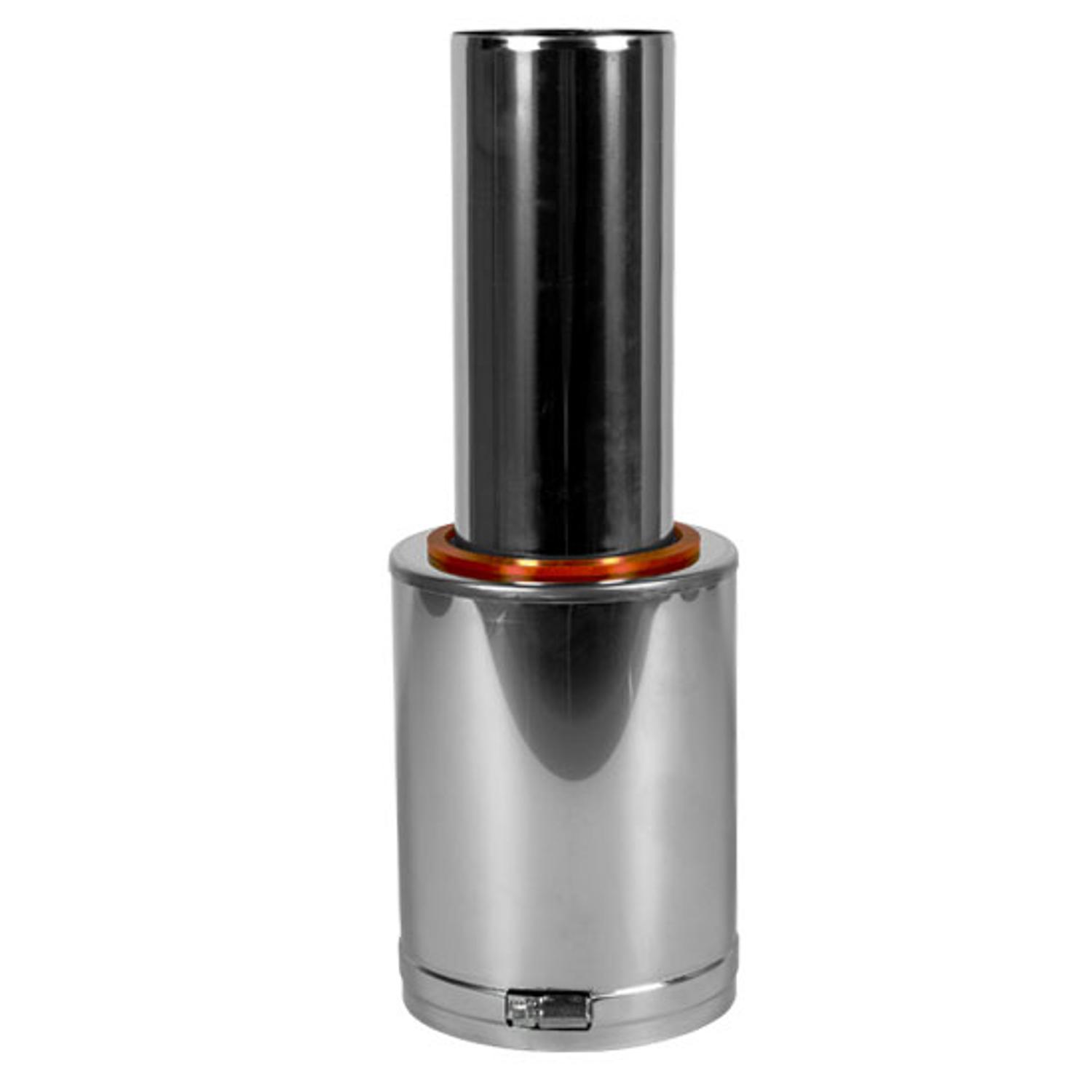

top section / flue gas outlet without air supply
The CI series external wall system is ideal for installing sealed gas and oil-fired boilers with a maximum flue gas temperature of 120°C (condensing boilers). You can be confident that there will be no corrosion or ice formation. The CI series external wall system is also very easy to install. You will undoubtedly appreciate the system's simplicity and the solid result. The flue pipe is made of durable PP plastic, and the outer casing is mirror-polished stainless steel. This is an attractive material and ideal for professionals. The extensive package of smart accessories will help you install the chimney system.
Diameter
Article number
Name
Gross price
Netto price
top section / flue gas outlet without air supply 60/100
Loading...
Loading...
Loading...
Loading...
Loading...
top section / flue gas outlet without air supply ø80/125
Loading...
Loading...
Loading...
Loading...
Loading...
top section / flue gas outlet without air supply ø110/160
Loading...
Loading...
Loading...
Loading...
Loading...
Features
Colour | shiny stainless steel |
Diameter | 60/100, 80/125, 110/160 |
Inner tube material | Plastic PPs |
Outer tube material | Stainless steel 304 glossy |
Wall thickness of inner tube | 2mm |
Sealing | Elastomer in EPDM UNI EN 14241-1 double lip (heating oil suitable as gas) |
Inner tube production method | seamless |
Production method of outer tube | seamless welded (butt welded) |
Classification | T120 H1 W2 O00 LE D U0 EN 14471:2013+A1:2015 DOP-002-02.05.2016 |
suitable for outdoor placement | Yes |
inclusive | clamp |
Stock | In stock |
Delivery time | Ordered before 3pm, delivered next day |
